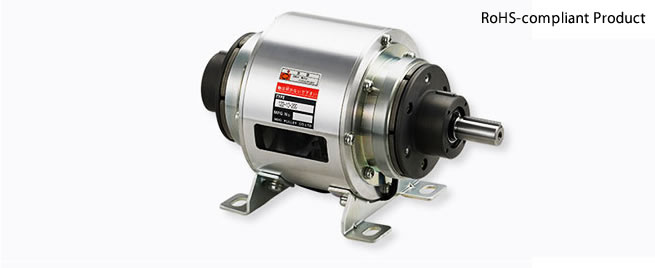

122 Models (Double clutches/brakes)

Enquire now
Cb un 122 l

Specifications

Model Size Dynamic friction torque Td ［N・m］ Static friction torque Ts ［N・m］ Coil (at 20℃) Heat resistance class Max. rotation speed ［min-1］ Rotating part moment of inertia J ［kg・m2］ Total work performed until readjustment of the air gap ET ［J］ Armature pull-in time ta ［s］ Torque build-up time tp ［s］ Torque decaying time td ［s］ Mass ［kg］
Voltage ［V］ Wattage ［W］ Current ［A］ Resistance ［Ω］
122-06-20G 06 5 5.5 DC24 11 0.46 52 B 3000 2.19×10-4 36×106 C: 0.020/B: 0.015 C: 0.041/B: 0.033 C: 0.020/B: 0.015 4
122-08-20G 08 10 11 DC24 15 0.63 38 B 3000 6.55×10-4 60×106 C: 0.023/B: 0.016 C: 0.051/B: 0.042 C: 0.030/B: 0.025 6
122-10-20G 10 20 22 DC24 20 0.83 29 B 3000 2.12×10-3 130×106 C: 0.025/B: 0.018 C:0.063 / B:0.056 C: 0.050/B: 0.030 9
122-12-20G 12 40 45 DC24 25 1.04 23 B 3000 6.35×10-3 250×106 C: 0.040/B: 0.027 C: 0.115/B: 0.090 C: 0.065/B: 0.050 17
122-16-20G 16 80 90 DC24 35 1.46 16 B 3000 1.99×10-2 470×106 C: 0.050/B: 0.035 C: 0.160/B: 0.127 C: 0.085/B: 0.055 29
122-20-20G 20 160 175 DC24 45 1.88 13 B 2500 6.15×10-2 10×108 C: 0.090/B: 0.065 C: 0.250/B: 0.200 C: 0.130/B: 0.070 58
*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.

[Dimensions]

Size Dimensions of part
A1 A2 B1 B2 C D E F G H J1 J2 K L M N Z1 Z2
06 65 90 90 105 65 100 27.5 61 2.6 115 73 48 142 211 47 33 13.5 6.5
08 80 110 110 130 80 125 32.5 72 3.2 142.5 83 53 162 246 57 37 15.5 9
10 105 135 140 160 90 150 35 81 3.2 165 100 59 190 294 72 47 20 11.5
12 135 160 175 185 112 190 42.5 97 4.5 207 124 74 222 358 93 52 24.5 11.5
16 155 200 200 230 132 230 45 109 6 247 150.5 89.5 272 440 114.5 62 28 14
20 195 240 240 270 160 290 47.5 124 20 305 197 114 348 551 143 74.5 28 14
Size Dimensions of shaft
Q1 Q2 S1 S2 U1 U2 V1 V2 X1 X2 W1, 2
06 25 20 11 38 12.5 39.5 M4×0.7, length: 8 3-M4×0.7, length: 4 3° to 120° 60° 4
08 30 25 14 45 16 47 M4×0.7, length: 8 3-M4×0.7, length: 6 3° to 120° 60° 5
10 40 30 19 55 21 57 M6×1, length: 11 4-M4×0.7, length: 8 4° to 90° 45° 5
12 50 40 24 64 27 67 M6×1, length: 11 4-M4×0.7, length: 8 4° to 90° 45° 7
16 60 50 28 75 31 78 M6×1, length: 11 6-M5×0.8, length: 8 6° to 60° 30° 7
20 80 60 38 90 41.5 93.5 M10×1.5, length: 17 4-M6×1, length: 12 4° to 90° 45° 10
*The input/output keyways are old JIS standard class 2 while the key is old JIS standard class 1. Note that the keyway dimensions of the unit hub part do not conform to JIS standards. Check them on the dimensions table above. *When inserting pulleys or the like onto output shafts, use the supplied insertion set. *The 122-20-20G base is a casting.
