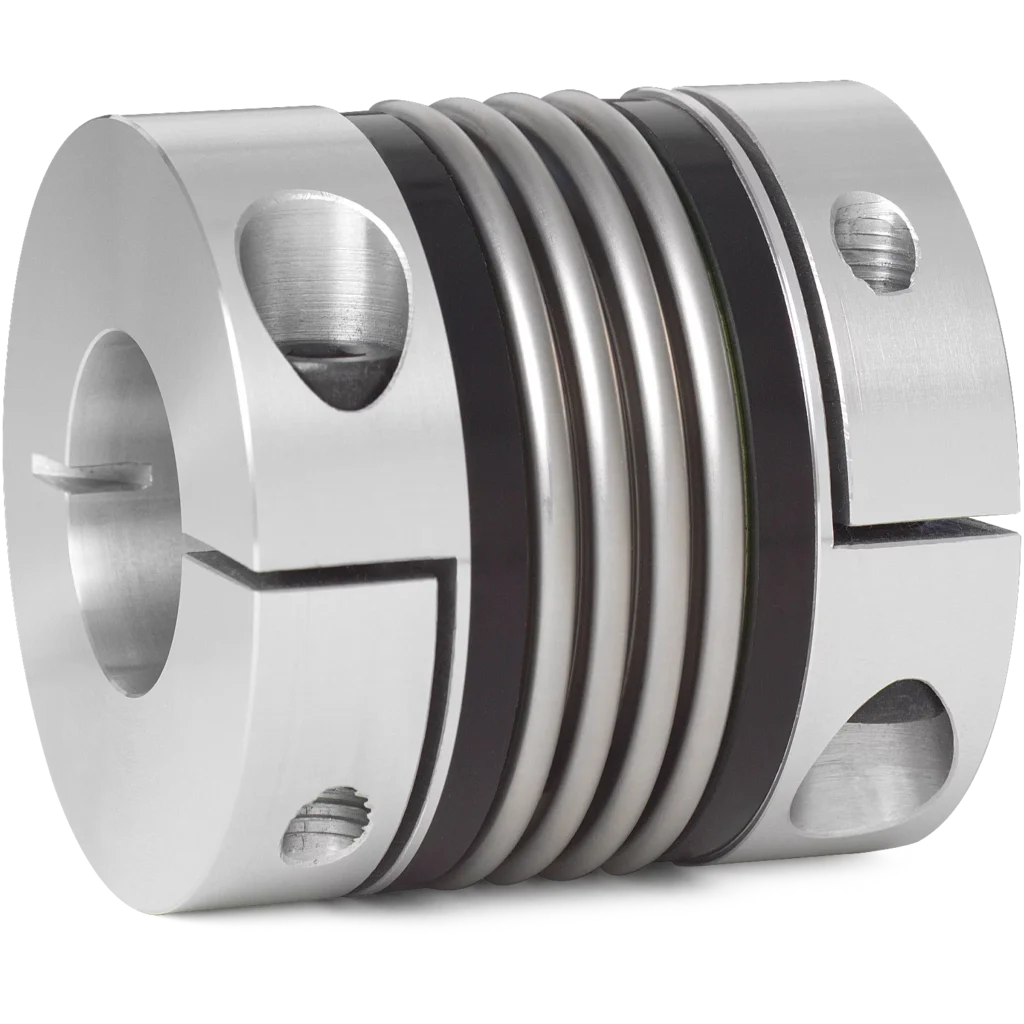

Bellows coupling with clamping hub – compact version

15 – 500 Nm | Compact design
Enquire now
Rw pk metallbalgkupplung bkc

Features

  • For high speeds
  • For space restricted installations
  • Light weight and low moment of inertia

Temperature range

  • -30 °C to +100 °C (-22 °F to +212 °F)

Design

  • Two clamping hubs concentrically mounted to flexible bellows
  • Brief overloads of up to 1.5x the rated torque are acceptable

Materials

  • Bellows: high grade stainless steel
  • Hubs: up to series 80 – aluminum, optionally steel
  • Hubs: from series 150 – steel

Service life

  • R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded

Fit clearance

  • Overall shaft / hub clearance of 0.01 – 0.05 mm

Special solutions

  • Various materials, tolerances, dimensions and performance ratings available for custom applications on request

ATEX (Optional)

  • For use in hazardous zones 1/21 and 2/22, the metal bellows has been authorized under directive 94/9/EG and is available with certification

Technical Specifications

Downloads

Catalog data, ordering examples & installation instructions

  • Ordering examples precision coupling
  • Installation and operating instructions for R+W metal bellows couplings models BK/MK
  • Technical data BK1
