BXW Models

Enquire now

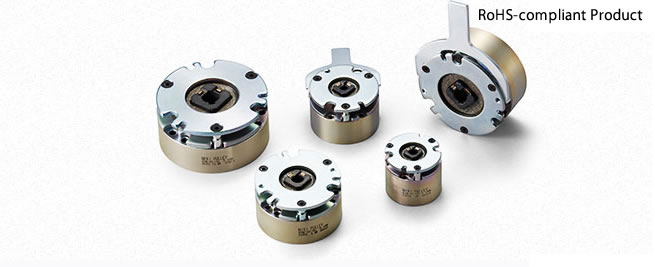

Cb of bxw l

Specifications

(Braking use)

Model Size Static friction torque Ts [N･m] Coil (at 20℃) Heat resistance class Lead wire Max. rotation speed ［min-1］ Rotating part moment of inertia J ［kg・m2］ Allowable braking energy rate Pbaℓ ［W］ Total braking energy ET ［J］ Armature pull-in time ta ［s］ Armature release time tar ［s］ Mass ［kg］
Voltage ［V］ Wattage ［W］ Current ［A］ Resistance ［Ω］ UL style Size
BXW-01-10L 01 0.12 12 5.0 0.417 28.8 F UL3398 AWG26 5000 0.6×10-6 2.5 1.5×106 0.008 0.015 0.2
24 5.0 0.208 115 F
45 5.0 0.111 405 F
90 5.0 0.056 1622 F
180 5.0 0.028 6486 F
BXW-02-10L 02 0.25 12 6.6 0.550 21.8 F UL3398 AWG26 5000 1.9×10-6 5.0 3.0×106 0.008 0.015 0.3
24 6.6 0.275 87.3 F
45 6.6 0.147 307 F
90 6.6 0.073 1228 F
180 6.6 0.037 4912 F
BXW-02-12L 02 0.25 12 6.6 0.550 21.8 F UL3398 AWG26 5000 1.9×10-6 5.0 3.0×106 0.008 0.015 0.3
24 6.6 0.275 87.3 F
45 6.6 0.147 307 F
90 6.6 0.073 1228 F
180 6.6 0.037 4912 F
BXW-03-10L 03 0.50 12 9.0 0.750 16.0 F UL3398 AWG26 5000 3.8×10-6 10.0 4.5×106 0.025 0.025 0.4
24 9.0 0.375 64.0 F
45 8.2 0.182 247 F
90 8.2 0.091 988 F
180 8.2 0.046 3954 F
BXW-03-12L 03 0.50 12 9.0 0.750 16.0 F UL3398 AWG26 5000 3.8×10-6 10.0 4.5×106 0.025 0.025 0.4
24 9.0 0.375 64.0 F
45 8.2 0.182 247 F
90 8.2 0.091 988 F
180 8.2 0.046 3954 F
BXW-04-10L 04 1.00 12 11.5 0.958 12.5 F UL3398 AWG22 5000 12.0×10-6 20.0 7.0×106 0.030 0.030 0.6
24 11.5 0.479 50.1 F
45 10.0 0.222 203 F
90 10.0 0.111 810 F
180 10.0 0.056 3241 F
BXW-04-12L 04 1.00 12 11.5 0.958 12.5 F UL3398 AWG22 5000 12.0×10-6 20.0 7.0×106 0.030 0.030 0.6
24 11.5 0.479 50.1 F
45 10.0 0.222 203 F
90 10.0 0.111 810 F
180 10.0 0.056 3241 F
BXW-05-10L 05 2.00 12 13.0 1.083 11.1 F UL3398 AWG22 5000 23.0×10-6 30.0 12.0×106 0.035 0.035 0.8
24 13.0 0.542 44.3 F
45 13.0 0.289 156 F
90 13.0 0.144 623 F
180 13.0 0.072 2492 F
BXW-05-12L 05 2.00 12 13.0 1.083 11.1 F UL3398 AWG22 5000 23.0×10-6 30.0 12.0×106 0.035 0.035 0.8
24 13.0 0.542 44.3 F
45 13.0 0.289 156 F
90 13.0 0.144 623 F
180 13.0 0.072 2492 F
*Depending on the initial torque characteristics, break-in to condition the engaging surfaces may be required.

[Specifications] BXW-□-□H (Holding use)

Model Size Static friction torque Ts [N･m] Coil (at 20℃) Heat resistance class Lead wire Max. rotation speed ［min-1］ Rotating part moment of inertia J ［kg・m2］ Allowable braking energy rate Pbaℓ ［W］ Total braking energy ET ［J］ Armature pull-in time ta ［s］ Armature release time tar ［s］ Mass ［kg］
Voltage ［V］ Wattage ［W］ Current ［A］ Resistance ［Ω］ UL style Size
BXW-01-10H 01 0.24 12 5.0 0.417 28.8 F UL3398 AWG26 5000 0.6×10-6 0.5 0.2×106 0.010 0.010 0.2
24 5.0 0.208 115 F
45 5.0 0.111 405 F
90 5.0 0.056 1622 F
180 5.0 0.028 6486 F
BXW-02-10H 02 0.50 12 6.6 0.550 21.8 F UL3398 AWG26 5000 1.9×10-6 1.0 0.3×106 0.010 0.010 0.3
24 6.6 0.275 87.3 F
45 6.6 0.147 307 F
90 6.6 0.073 1228 F
180 6.6 0.037 4912 F
BXW-02-12H 02 0.50 12 6.6 0.550 21.8 F UL3398 AWG26 5000 1.9×10-6 1.0 0.3×106 0.010 0.010 0.3
24 6.6 0.275 87.3 F
45 6.6 0.147 307 F
90 6.6 0.073 1228 F
180 6.6 0.037 4912 F
BXW-03-10H 03 1.00 12 9.0 0.750 16.0 F UL3398 AWG26 5000 3.8×10-6 2.0 0.5×106 0.035 0.020 0.4
24 9.0 0.375 64.0 F
45 8.2 0.182 247 F
90 8.2 0.091 988 F
180 8.2 0.046 3954 F
BXW-03-12H 03 1.00 12 9.0 0.750 16.0 F UL3398 AWG26 5000 3.8×10-6 2.0 0.5×106 0.035 0.020 0.4
24 9.0 0.375 64.0 F
45 8.2 0.182 247 F
90 8.2 0.091 988 F
180 8.2 0.046 3954 F
BXW-04-10H 04 2.00 12 11.5 0.958 12.5 F UL3398 AWG22 5000 12.0×10-6 4.0 1.0×106 0.040 0.025 0.6
24 11.5 0.479 50.1 F
45 10.0 0.222 203 F
90 10.0 0.111 810 F
180 10.0 0.056 3241 F
BXW-04-12H 04 2.00 12 11.5 0.958 12.5 F UL3398 AWG22 5000 12.0×10-6 4.0 1.0×106 0.040 0.025 0.6
24 11.5 0.479 50.1 F
45 10.0 0.222 203 F
90 10.0 0.111 810 F
180 10.0 0.056 3241 F
BXW-05-10H 05 4.00 12 13.0 1.083 11.1 F UL3398 AWG22 5000 23.0×10-6 6.0 2.0×106 0.045 0.030 0.8
24 13.0 0.542 44.3 F
45 13.0 0.289 156 F
90 13.0 0.144 623 F
180 13.0 0.072 2492 F
BXW-05-12H 05 4.00 12 13.0 1.083 11.1 F UL3398 AWG22 5000 23.0×10-6 6.0 2.0×106 0.045 0.030 0.8
24 13.0 0.542 44.3 F
45 13.0 0.289 156 F
90 13.0 0.144 623 F
180 13.0 0.072 2492 F
*The armature pull-in time and armature release time are measured during DC switching.

[Specifications] BXW-□-□S (Dedicated for holding)

Model Size Static friction torque Ts [N･m] Coil (at 20℃) Heat resistance class Lead wire Max. rotation speed ［min-1］ Rotating part moment of inertia J ［kg・m2］ Allowable braking energy rate Pbaℓ ［W］ Total braking energy ET ［J］ Armature pull-in time ta ［s］ Armature release time tar ［s］ Mass ［kg］
Voltage ［V］ Wattage ［W］ Current ［A］ Resistance ［Ω］ UL style Size
BXW-01-10S 01 0.36 24 5.0 0.208 115 F UL3398 AWG26 5000 0.6×10－6 － － 0.025 0.010 0.2
BXW-02-10S 02 0.75 24 6.6 0.275 87.3 F UL3398 AWG26 5000 1.9×10-6 － － 0.030 0.010 0.3
BXW-02-12S 02 0.75 24 6.6 0.275 87.3 F UL3398 AWG26 5000 1.9×10-6 － － 0.030 0.010 0.3
BXW-03-10S 03 1.50 24 9.0 0.375 64.0 F UL3398 AWG26 5000 3.8×10-6 － － 0.035 0.020 0.4
BXW-03-12S 03 1.50 24 9.0 0.375 64.0 F UL3398 AWG26 5000 3.8×10-6 － － 0.035 0.020 0.4
BXW-04-10S 04 2.60 24 11.5 0.479 50.1 F UL3398 AWG22 5000 12.0×10-6 － － 0.040 0.025 0.6
BXW-04-12S 04 2.60 24 11.5 0.479 50.1 F UL3398 AWG22 5000 12.0×10-6 － － 0.040 0.025 0.6
BXW-05-10S 05 5.20 24 13.0 0.542 44.3 F UL3398 AWG22 5000 23.0×10-6 － － 0.045 0.030 0.8
BXW-05-12S 05 5.20 24 13.0 0.542 44.3 F UL3398 AWG22 5000 23.0×10-6 － － 0.045 0.030 0.8
*The armature pull-in time and armature release time are taken during DC switching.

[Dimensions]

単位 [mm]
Size Radial direction dimensions Axial direction dimentions Bore dimensions
A B C D E S V R F m O P Q U G I J K L N a d b t
01 37 32 18 13.5 12.0 6 3 3 10 M3 － － － － 4.5 5.0 22.5 31.5 9 22.5 0.10 5 － －
6 － －
02 47 40 21 16.0 14.5 7 3.4 3.4 12 M3 9(10.2) 50 13 51 6.0 5.5 19.2 31.2 12 20.0 0.10 6 － －
7 － －
03 56 48 24 19.0 17.0 7 3.4 3.4 14 M3 11(11.7) 60 15 60 6.0 6.0 19.9 31.9 12 20.0 0.15 8 － －
04 65 58 35 24.0 22.0 7 3.4 3.4 18 M4 12(12.5) 70 15 70 7.0 7.0 19.9 33.9 14 21.0 0.15 10 3 1.2
05 75 66 36 28.0 26.5 9 4.5 4.5 22 M4 14(14.5) 80 20 80 7.0 7.0 22.1 36.1 14 21.5 0.15 12 4 1.5
* There is no release lever option for size #01. * The dimensions in parentheses ( ) are values for BXW- □ – □ S.
