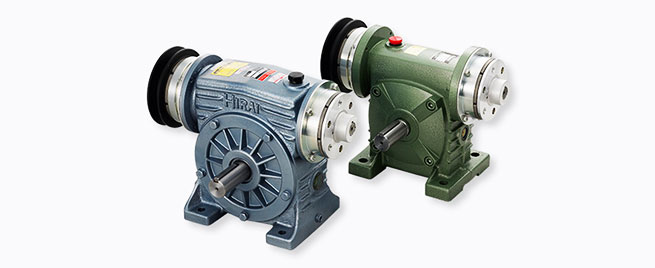

CBW Models Clutch/ Brake Units – Speed Reducer-Integrated Type

Cb un cbw l

Specifications

Model Size Dynamic friction torque Td [N・m] Static friction torque Ts [N・m] Coil (at 20℃) Heat resistance class Max. rotation speed [min-1 Rotating part moment of inertia J [kg・m2 Total work performed until readjustment of the air gap ET [J] Armature pull-in time ta [s] Torque build-up time tp [s] Torque decaying time td [s]
Voltage [V] Wattage[W] Current [A] Resistance [Ω]
CBW-06N-H□ 06 5 5.5 DC24 11 0.46 52 B 1800 1.66×10-4 36×106 C: 0.020/B: 0.015 C: 0.041/B: 0.033 C: 0.020/B: 0.015
CBW-08N-H□ 08 10 11 DC24 15 0.63 38 B 1800 4.78×10-4 60×106 C: 0.023/B: 0.016 C: 0.051/B: 0.042 C: 0.030/B: 0.025
CBW-10N-H□ 10 20 22 DC24 20 0.83 29 B 1800 1.71×10-3 130×106 C: 0.025/B: 0.018 C: 0.063/B: 0.056 C: 0.050/B: 0.030
CBW-12N-H□ 12 40 45 DC24 25 1.04 23 B 1800 4.53×10-3 250×106 C: 0.040/B: 0.027 C: 0.115/B: 0.090 C: 0.065/B: 0.050
*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.
Model Size Input part Speed reducer Mass [kg]
Pulley diameter [mm] Belt type Model Output shaft rated values Speed reduction ratio 1/□ Oil volume [L]
10 20 30 40 50 60
CBW-06N-H□ 06 76.2 (3 in.) A-1 N-1A  Torque [N・m] 45.3 53.4 46.7 54.7 54.2 55.4 0.25 6.5
 O.H.L. [N] 1560 1760 1760 1760 1760 1760
CBW-08N-H□ 08 101.6 (4 in.) A-1 N-2A  Torque [N・m] 79.8 102 86.9 104 98.5 100 0.5 15
 O.H.L. [N] 1760 2240 2630 2880 3140 3230
CBW-10N-H□ 10 127 (5 in.) B-1 N-3A  Torque [N・m] 165 180 180 188 187 164 1.0 24
 O.H.L. [N] 2250 2900 3370 3720 4040 4370
CBW-12N-H□ 12 152.4 (6 in.) B-1 N-4A  Torque [N・m] 292 293 301 302 2.0 38
 O.H.L. [N] 2780 3640 4210 4680

[Dimensions]

Unit [mm]
Model Dimensions of part Dimensions of shaft
A1 A2 B1 B2 C1 C2 G H J K L M N P R1 R2 T Y Z Q S U W
CBW-06N-H□ 95 95 117 136 65 115.8 11 157 58 120.5 225 15 104.5 76.2 135 90 80 50.8 9.5 45 20 22.5 6
CBW-08N-H□ 115 112 140 165 82 146 15 212 75 149 284 18 135 101.6 160 105 100 64 11 50 25 28 8
CBW-10N-H□ 125 146 155 205 102 184 16 255 80.5 174.5 333 21 158.5 127 185 125 125 82 12 65 30 33 8
CBW-12N-H□ 150 168 185 245 118 213 20 289 93 203 388 25.5 185 152.4 225 150 150 95 14 75 35 38 10

CBW-□N-B□

[Specifications]

Model Size Dynamic friction torque Td [N・m] Static friction torque Ts [N・m] Coil (at 20℃) Heat resistance class Max. rotation speed [min-1 Rotating part moment of inertia J [kg・m2 Total work performed until readjustment of the gap ET [J] Armature pull-in time ta [s] Torque build-up time tp [s] Torque decaying time td [s]
Voltage [V] Wattage [W] Current [A] Resistance [Ω]
CBW-06N-B□-10 ~ 30 06 5 5.5 DC24 11 0.46 52 B 1800 1.56×10-4 36×106 C: 0.020/B: 0.015 C: 0.041/B: 0.033 C: 0.020/B: 0.015
CBW-06N-B□-40 ~ 60 06 5 5.5 DC24 11 0.46 52 B 1800 1.76×10-4 36×106 C: 0.020/B: 0.015 C: 0.041/B: 0.033 C: 0.020/B: 0.015
CBW-08N-B□-10 ~ 30 08 10 11 DC24 15 0.63 38 B 1800 4.70×10-4 60×106 C: 0.023/B: 0.016 C: 0.051/B: 0.042 C: 0.030/B: 0.025
CBW-08N-B□-40 ~ 60 08 10 11 DC24 15 0.63 38 B 1800 4.85×10-4 60×106 C: 0.023/B: 0.016 C: 0.051/B: 0.042 C: 0.030/B: 0.025
CBW-10N-B□-10 ~ 30 10 20 22 DC24 20 0.83 29 B 1800 1.48×10-3 130×106 C: 0.025/B: 0.018 C: 0.063/B: 0.056 C: 0.050/B: 0.030
CBW-10N-B□-40 ~ 60 10 20 22 DC24 20 0.83 29 B 1800 1.61×10-3 130×106 C: 0.025/B: 0.018 C: 0.063/B: 0.056 C: 0.050/B: 0.030
CBW-12N-B□-10 ~ 30 12 40 45 DC24 25 1.04 23 B 1800 4.23×10-3 250×106 C: 0.040/B: 0.027 C: 0.115/B: 0.090 C: 0.065/B: 0.050
CBW-12N-B□-40 ~ 60 12 40 45 DC24 25 1.04 23 B 1800 4.35×10-3 250×106 C: 0.040/B: 0.027 C: 0.115/B: 0.090 C: 0.065/B: 0.050
*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.
Model Size Input part Speed reducer Mass [kg]
Pulley diameter [mm] Belt model Model Output shaft rated values Speed reduction ratio 1/□ Oil volume [L]
10 20 30 40 50 60
CBW-06N-B□-10 ~ 30 06 76.2 (3 in.) A-1 N-PR-12 Torque [N・m] 35 38 44 0.3 9
O.H.L. [N] 950 1313 1548
CBW-06N-B□-40 ~ 60 06 76.2 (3 in.) A-1 N-PR-15 Torque [N・m] 64 56 56 0.4 11
O.H.L. [N] 2450 2450 2450
CBW-08N-B□-10 ~ 30 08 101.6 (4 in.) A-1 N-PR-15 Torque [N・m] 56 57 72 0.4 11.5
O.H.L. [N] 1421 1862 2322
CBW-08N-B□-40 ~ 60 08 101.6 (4 in.) A-1 N-PR-18 Torque [N・m] 143 136 138 0.7 16.5
O.H.L. [N] 2646 2646 2646
CBW-10N-B□-10 ~ 30 10 127 (5 in.) B-1 N-PR-18 Torque [N・m] 120 126 150 0.7 17.5
O.H.L. [N] 1490 2077 2440
CBW-10N-B□-40 ~ 60 10 127 (5 in.) B-1 N-PR-22 Torque [N・m] 191 187 167 1.2 23.5
O.H.L. [N] 3057 3146 3155
CBW-12N-B□-10 ~ 30 12 152.4 (6 in.) B-1 N-PR-22 Torque [N・m] 166 167 213 1.2 25
O.H.L. [N] 1715 2528 2871
CBW-12N-B□-40 ~ 60 12 152.4 (6 in.) B-1 N-PR-25 Torque [N・m] 373 352 336 2.9 40
O.H.L. [N] 3665 3783 4126
*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1.

[Dimensions]

Model Dimensions of part Dimensions of shaft
A1 A2 B1 B2 C1 C2 G H J K L M N P R1 R2 T Y Z Q S U W
CBW-06N-B□-10 ~ 30 95 110 120 140 80 130 15 175 56 126 236 15 110 76.2 145 95 80 50 11 40 17 19 5
CBW-06N-B□-40 ~ 60 105 120 130 150 90 150 20 200 56 131 246 15 115 76.2 165 110 80 60 11 50 22 24.5 6
CBW-08N-B□-10 ~ 30 105 120 130 150 90 150 20 201 59 137 260 18 123 101.6 165 110 100 60 11 50 22 24.5 6
CBW-08N-B□-40 ~ 60 115 150 150 190 105 175 25 230 61 154 294 18 140 101.6 195 130 100 70 15 60 28 31 8
CBW-10N-B□-10 ~ 30 115 150 150 190 105 175 25 238.5 68 164 312 21 148 127 195 130 125 70 15 60 28 31 8
CBW-10N-B□-40 ~ 60 135 180 170 220 120 200 25 265 63 174 332 21 158 127 210 140 125 80 15 65 32 35 10
CBW-12N-B□-10 ~ 30 135 180 170 220 120 200 25 276 67.5 179 345 21 166 152.4 210 140 150 80 15 65 32 35 10
CBW-12N-B□-40 ~ 60 155 220 190 270 150 250 25 370 76.5 210 405 23.5 195 152.4 260 170 150 100 15 75 38 41 10
