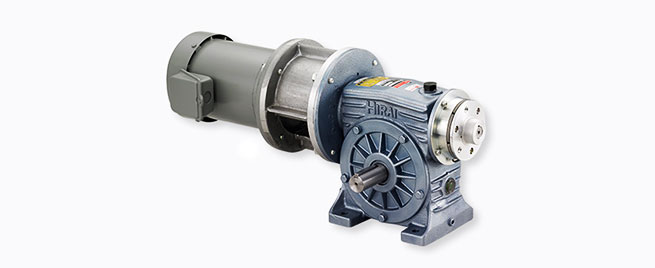

CMW Models Clutch/Brake Units – Motor/Speed Reducer-Integrated Type

Enquire now
Cb un cmw l

Specifications

Model Size Dynamic friction torque Td [N･m] Static friction torque Ts［N･m］ Coil(at20℃) Heat resistance class Rotating part moment of inertia [kg･m2] Total work performed until readjustment of the air gap ET[J] Armature pull-in time ta[s] Torque build-up time tp［s］ Torque decaying time td［s］
Voltage [V] Wattage [W] Current [A] Resistance [Ω]
CMW-06N-H□H 06 5 5.5 DC24 11 0.46 52 B 1.66×10-4 36×106 C:0.020 / B:0.015 C:0.041 / B:0.033 C:0.020 / B:0.015
CMW-08N-H□H 08 10 11 DC24 15 0.63 38 B 4.78×10-4 60×106 C:0.023 / B:0.016 C:0.051 / B:0.042 C:0.030 / B:0.025
CMW-10N-H□H 10 20 22 DC24 20 0.83 29 B 1.71×10-3 130×106 C:0.025 / B:0.018 C:0.063 / B:0.056 C:0.050 / B:0.030
CMW-12N-H□H 12 40 45 DC24 25 1.04 23 B 4.53×10-3 250×106 C:0.040 / B:0.027 C:0.115 / B:0.090 C:0.065 / B:0.050
※Kinetic friction torque Td values calculated at relative velocity of 100min-1 min.Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.
Model Size Motor output[kW]3-phase 4P Speed Reducers Mass[kg]
Model Rated output shaft Speed reduction ratio　1/□ Oil volume[L]
10 20 30 40 50 60
CMW-06N-H□H 06 0.2 N-2SA Torque［N･m］ 78.2 79.9 85.3 78.6 88.9 76.1 0.5 16
O.H.L.［N］ 1770 2280 2620 2930 3160 3230
CMW-08N-H□H 08 0.4 N-2A Torque［N･m］ 79.8 102 86.9 104 98.5 100 0.5 32
O.H.L.［N］ 1760 2240 2630 2880 3140 3230
CMW-10N-H□H 10 0.75 N-3A Torque［N･m］ 165 180 180 188 187 164 1.0 44
O.H.L.［N］ 2250 2900 3370 3720 4040 4370
CMW-12N-H□H 12 1.5 N-4A Torque［N･m］ 292 293 301 302 － － 2.0 72
O.H.L.［N］ 2780 3640 4210 4680
※The induction motors are fully sealed external fan motors that conform to the JIS C4210 standard (for 0.2 kW and 0.4 kW models) or the JIS C 4213 standard (for 0.75 kW models or higher). ※The power supplies for the motors are 3-phase, 200 V AC at 50 Hz, or 200/220 V AC at 60 Hz. ※If you desire a special voltage (5 Power Supply Specifications), different number of poles, or the like for the induction motor, contact Miki Pulley. ※Speed reducer is made by Hirai Reduction Gear Manufacturing Co.

[Dimensions]

Unit [mm]
Model Dimensions of part Dimensions of shaft
A1 A2 B1 B2 C1 C2 D1 D2 E F G H J K KL L M N Z Q S U W
CMW-06N-H□H 105 105 132 157 75 135 160 130 110 86 15 215 375 117 － 492 205 170 12 50 25 28 8
CMW-08N-H□H 115 112 140 165 82 146 160 145 110 100 15 226 412 135 124 547 225 187 11 50 25 28 8
CMW-10N-H□H 125 146 155 200 102 184 200 163 120 125 16 284 477 159 131 624 255 222 12 65 30 33 8
CMW-12N-H□H 150 168 186 245 118 213 210 180 150 150 20 318 541 185 145 714 286 255 14 75 35 38 10
